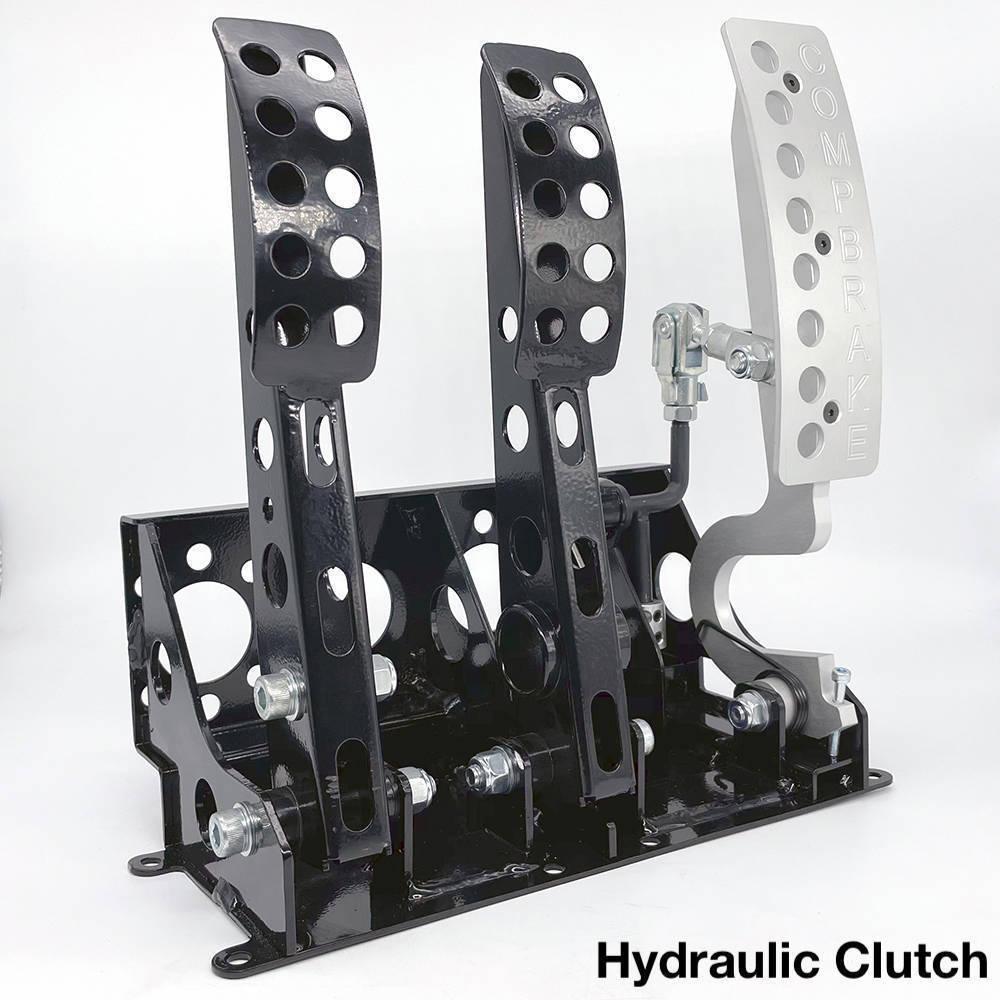

PEDAL BOX - CABLE CLUTCH or HYDRAULIC CLUTH WITH INTEGRAL THROTTLE PEDAL.

Here's a black powder-coated, floor-mounted pedal box, nicely made from 2mm and 3mm steel.

Both brake and clutch pedals pivot on nylon bushes.

The clear-anodised aluminium throttle pedal has an adjustable stop, an adjustable link and a sliding clamp for the inner cable fixing, offering maximum flexibility and adjustment.

There is no hole for the outer cable, this must be drilled to suit your installation and cable choice.

There are two 37mm holes for master cylinders.

Approx Dimensions: Width 260mm, Pedal Height 280mm, Box Depth 140mm (Depth Including Master Cylinders 250mm)

All of our standard, integral reservoir and non-reservoir cylinders will fit.

The brake pedal has an integral 26mm I.D. balance bar tube.

The sprung-return clutch pedal cam is adjustable and has a maximum stroke of 50mm.

The clutch outer cable is mounted on a bolted-on rear frame which is undrilled leaving you to select hole size and position depending on your choice of cable.

PEDAL BOX FOR CABLE CLUTCH #PEDBOX3

PEDAL BOX FOR HYDRAULIC CLUTCH #PEDBOX4
